Turret Handler

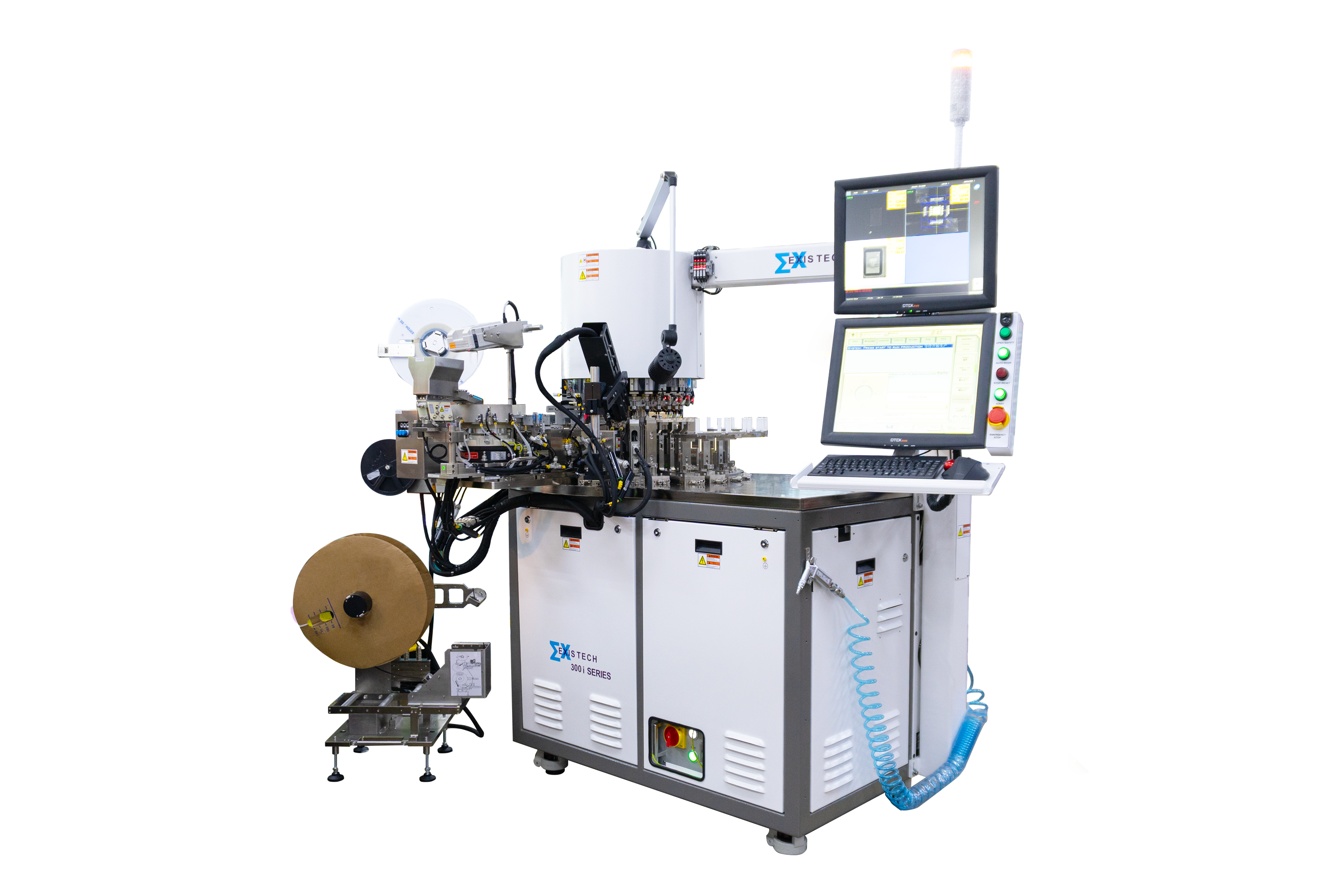

EXIS 250/300 Automatic Turret Handler

Be applicable for Lead Discrete, Power, Discrete, QFN, SOIC, or BGA

It is a high-speed turret handler which can support 24 nozzle stations at most. It adopts a special vision system with functions of visual inspection, Mark and OCR.

Enquiry
Back
exis 250,300 automatic turret handler
C6430
exis 300i (9002502,9002503) atx kunshan nobg
C6800

EXIS 250/300

Specifications

UPH

50,000+/45,000+38ms test time

Number of Test Stations

20/24

Productivity

MTBA＞60min; Conversion Time＜45min

Device Size

1mm×1mm~12mm×12mm

Packaging Form

Lead Discrete, Power Discrete, QFN, SOIC, BGA

Standard

Bowl

Optional

Tray, tape, tube

Standard

TTL

Optional

RS-232, GPIB, TCP/IP, SECS GEM

Standard

Flat test/Clamping test

Optional

Customization: Kelvin & non-Kelvin Solutions

Standard

Tape & Reel

Optional

Tray, tube, bulk, dual tape

Standard

Orientation, 2D, 3D, Mark, 5S

Optional

In pocket, post seal, OCR

Standard

300g (3N) to 3000g (30N)

Optional

Up to 6000g (60N)

Intelligent Functions

Pick up head auto calibration
Height auto compensation
Optional up to 6,000g (60N) -contact impulse elimination

Equipment Dimensions

1,400mm×1,200mm×2,000mm
